YZL系列立式振動電機
- 型號：YZL系列立式振動電機
- 電壓頻率：380伏50赫茲（可根據客戶要求特殊訂制）
- 絕緣等級：F級或H級
- 防護等級：IP55-IP66
- 工作方式：連續
- 環境溫度：不超過40℃
- 介紹：YZL系列立式振動電機由立式電機和激振源構成，所產生的回旋激振力通過電機圓錐面?zhèn)鹘o振動機械，使振動機械產 生回旋型圓振動和空間搖晃振動的復合工況，可作為各種振動篩、振動研磨機、振動光飾處理機、振動混料機等平 旋型或復旋型振動機械的激振源。
- 電話：021-67871206 021-57242438
詳情介紹
YZL系列立式振動電機由立式電機和激振源構成，所產生的回旋激振力通過電機圓錐面?zhèn)鹘o振動機械，使振動機械產 生回旋型圓振動和空間搖晃振動的復合工況，可作為各種振動篩、振動研磨機、振動光飾處理機、振動混料機等平 旋型或復旋型振動機械的激振源。
YLSV series three-stage long vibrator motors adopt special aluminum alloy shell, with a slender structure, can be installed on the vibration equipment without support beams. The special structure allows for a wider range of exciting force which is closer to the vibrating screen, so they can operate more smoothly. This series are widely used in mining and petroleum.
| YZL 系列立式振動電機 技術參數及尺寸 | ||||||||||||||||
| Technical Parameters and Dimension of YZL Series Vertical Vibrator Motors | ||||||||||||||||
| 三相四極（380V 50HZ 振動次數1430r/min) Three-phase and Four-pole 380V 50Hz Frequency 1430r/min | ||||||||||||||||

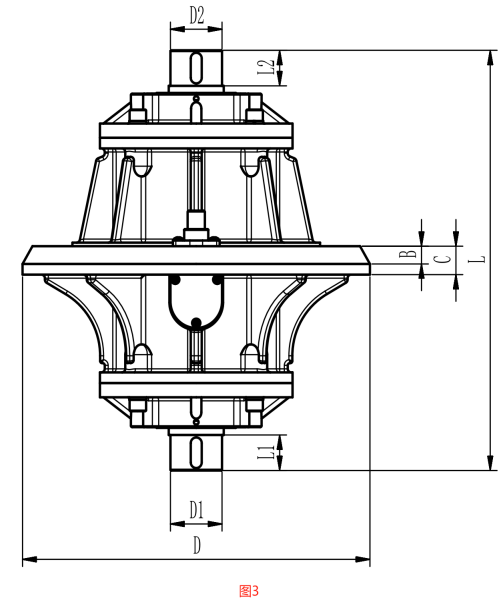

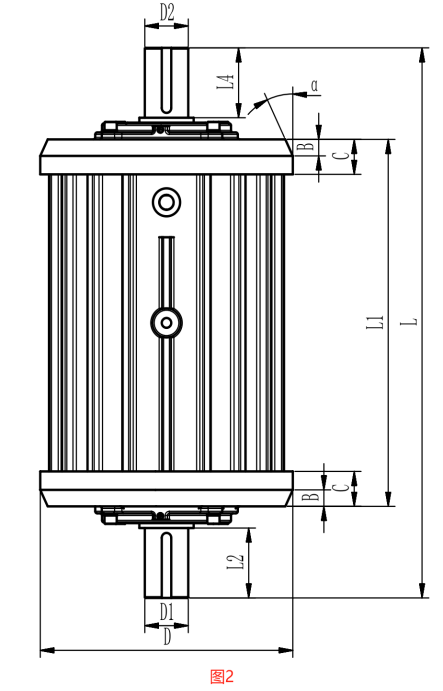

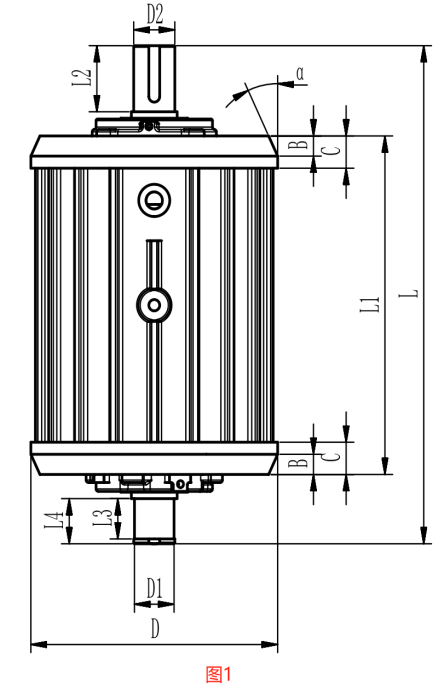

| 型號 Model | 額定功率Rated Power （kW） | 額定電流 Rated Current （A） | 安裝尺寸 Mounting Dimension | 重量 Weight （kg） | 圖號 Drawings No. | |||||||||||
| D | D1 | D2 | C | B | L1 | L2 | L3 | L4 | L | α | ||||||
| YZL-1.5-4 | 1.50 | 3.70 | 230 | 34 | 28 | 25 | 16 | 245 | 30 | 38 | 46 | 375 | 25 | 36 | 1 | |
| YZL-2.2-4 | 2.20 | 5.20 | 230 | 40 | 40 | 30 | 20 | 330 | 60 | 60 | 500 | 20 | 67 | 2 | ||
| YZL-4-4 | 4.00 | 9.70 | 318 | 51 | 54 | 35 | 25 | 345 | 82 | 50 | 56 | 535 | 25 | 110 | 1 | |
| YZL-5.5-4 | 5.50 | 13.20 | 318 | 51 | 54 | 40 | 25 | 420 | 82 | 50 | 56 | 618 | 25 | 150 | 1 | |
| YZL-7.5-4 | 7.50 | 18.50 | 372 | 60 | 64 | 50 | 23 | 450 | 78 | 60 | 66 | 670 | 25 | 200 | 1 | |
| YZL-11-4 | 11.00 | 24.60 | 372 | 64 | 64 | 50 | 23.6 | 525 | 100 | 100 | 787 | 25 | 243 | 2 | ||
| YZL-15-4 | 15.00 | 34.80 | 372 | 64 | 64 | 50 | 23.6 | 525 | 100 | 100 | 787 | 25 | 260 | 2 | ||
| YZL-3.7-4 | 3.70 | 8.90 | 505 | 75 | 75 | 40 | 25 | 50 | 50 | 591 | 30 | 180 | 3 | |||
| YZL-5-4 | 5.00 | 11.65 | 505 | 75 | 75 | 40 | 25 | 50 | 50 | 611 | 30 | 192 | 3 | |||
